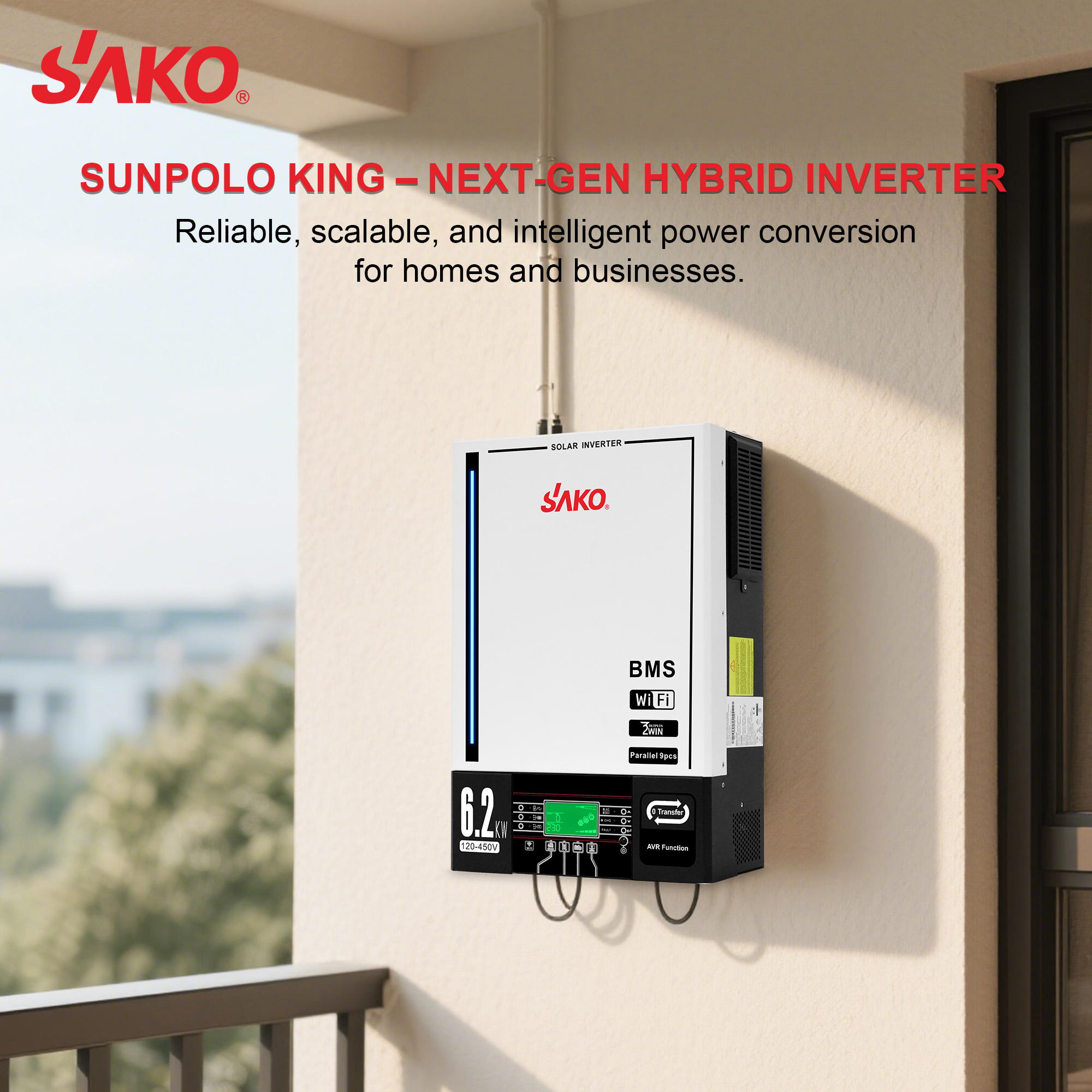

Sako SunPolo King 4.2KW 24V On Grid Off Grid Hybrid MPPT Solar Inverter

Description

???? PV Input (DC)

• Nominal DC Voltage / Max DC Voltage: 360VDC / 450VDC
• Start-up Voltage: 120VDC
• MPPT Voltage Range: 120 – 430VDC
• Max. PV Input Current: 27A

⚡ AC Output

• Nominal Output Voltage: 230VAC, Single Phase
• Output Voltage Range: 230VAC ±5% (Line Mode)
• ECO Mode Range: 110 – 280VAC
• Nominal Output Current: 27A
• Power Factor: 1.0
• Transfer Time:

o    Line → Battery: 0ms

o    Inverter → Bypass: 4ms

• Peak Efficiency: 93%

???? Battery & Charger

• Nominal Battery Voltage: 24VDC
• Supported Battery Types:
  AGM / Gel / Flooded / Tubular / LiFePO4
• Max Solar Charge Current: 120A
• Max AC Charge Current: 120A
• Max Total Charge Current: 120A

???? AC Input (Grid)

• Acceptable Input Voltage Range: 110 – 280VAC
• AC Start-up Voltage / Auto Restart: 120-140VAC / 180VAC
• Max AC Input Current: 40A

???? Communication

• USB / RS232 / RS485 (BMS) / Dry Contact / WiFi
• Parallel Function: Optional (Max 9 Units)

???? Physical Specifications

• Product Dimension (D×W×H): 530 × 377 × 225 mm
• Net Weight: 13.5 kg
• Gross Weight: 12 kg
• Enclosure: IP20
